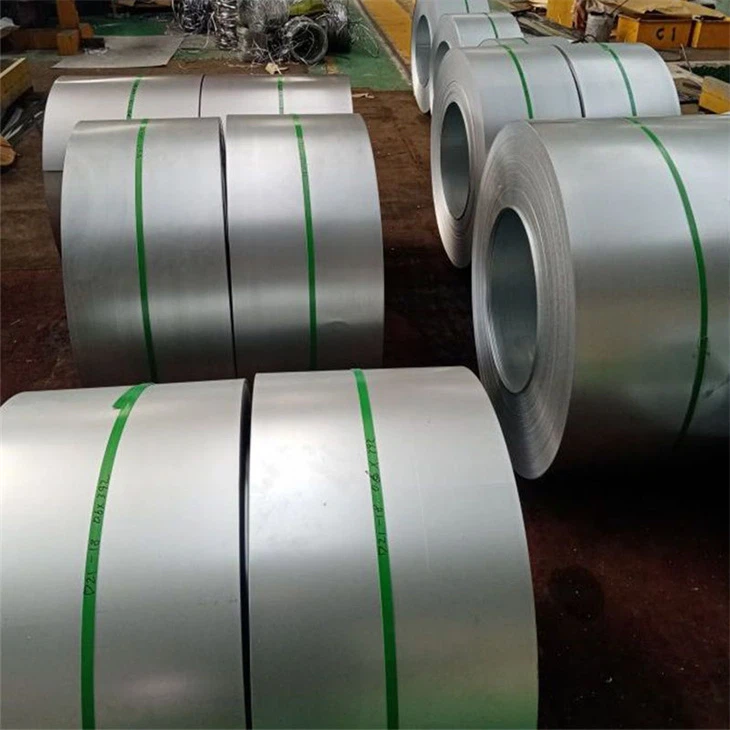

50H250 Non Grain Oriented Electrical Steel

50H250 Non Grain Oriented Electrical steel

50H250 Non Grain Oriented Electrical steel is an excellent choice for use in a wide range of electrical applications, where high magnetic performance and low iron loss are critical.

50H250 Silicon steel Specifications

Thickness	Assumed Density	Core Loss(W/Kg)				Core Loss(W/Lb)				Induction (800A/m)	Lamination Factor (Minimum)	Remark
		50Hz		60Hz		50Hz		60Hz
mm	Kg/dm3	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T
0.50	7.60	1.05	2.50	1.35	3.20	0.48	1.13	0.61	1.45	1.62	96.0	-

50H250 Silicon steel Typical Electrical and Magnetic Properties

Assumed Density	Resistivity	Core Loss								Induction T
		W／Kg				W／LB
Kg/dm3	Ohm*Meter (X10e-8)	50Hz		60Hz		50Hz		60Hz
		1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	1.0T	1.5T	2,500A/m	5,000A/m
7.60	59	1.01	2.39	1.31	3.09	0.46	1.09	0.59	1.40	1.57	1.67

50H250 Silicon steel Typical Mechanical Properties and Lamination Factors

Tensiile Strength				Yield Point				Elongation %		Hardness Hv(1)	Bending Test Value		Lamination Factor %
N/mm2		lb/in2(X10e3)		N/mm2		lb/in2(X10e3)
L	C	L	C	L	C	L	C	L	C		L	C
530	539	77	78	431	441	63	64	15	17	198	7	7	98.5

GNEE Steel's main business area is the production, processing and sale of steel products. Our main products include steel coils, steel sheets, steel pipes, ship plates and silicon steel sheets. We have over 15 years of experience in foreign trade and 20 years of experience in domestic market. We have the best supply chain and competitive prices to meet the requirements of different quality and price levels. Currently, we have customers all over the world and in the Middle East, Africa, South America, Southeast Asia, Latin America, Europe and other regions. We have a capacity of 100,000 tons.
